Specification
| ITEM | VALUE |
| NUMBER OF GRAPHIC | 192*64 |
| Multiplex level | 1/32 duty, 1/6 bias,VOP5.0V |
| Operating Temperature | -15℃~65℃ |
| Storage Temperature | -20℃~70℃ |
| Viewing Angle | 6.00 |
| CONTRIOL IC | ST7920&ST7921 |
| CONNECTION | PIN |
| Reflection | TRANSMISSTIVE |
| DISPLAY TYPE | 192*64 DOTS |
| BACK LIGHT COLOR | WHITE VDD+5V |
| LCD TYPE | STN NEGATIVE |
SHIPMENT

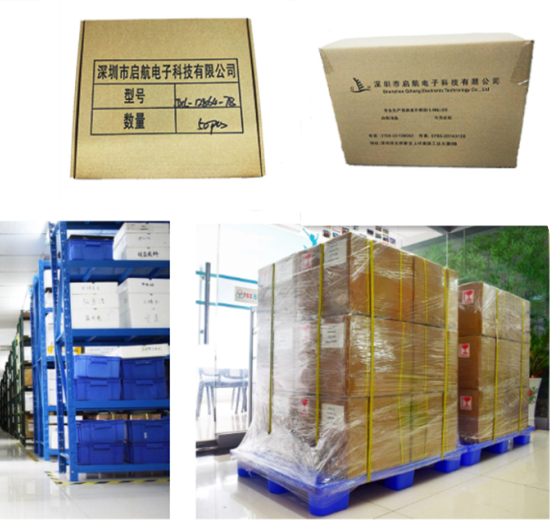

PACKAGE
NOTICE
Handle the protective film
A layer of protective film is pasted on the surface of the finished module. To prevent contamination of the display surface during assembly, Do not remove it before the assembly of the whole machine is completed. Avoid soiling or scratching the display surface.
Precautions during assembly operation
1. The module is carefully designed and assembled. Please do not process and modify it by yourself. 2. The metal frame claws must not be twisted and disassembled at will 3. Do not arbitrarily modify the circuit and components of the assembly hole of the processed PCB board 4. Do not modify the conductive strip 5. Do not modify any internal brackets 6. Do not touch, bend or twist the module 7. Do not apply uneven force to the PCB board during installation to avoid distortion of the PCB board. Conductive connection strap pull up
Strictly prevent static electricity
The control and drive circuits in the module are low-voltage, micro-power CMOS Circuits are easily broken down by static electricity, which is an irreparable damage bad, and the human body sometimes produces high voltage static electricity up to hundreds of volts or thousands of volts Therefore, extreme care should be taken in operation, assembly and use, and strict anti-static. to this end: 1. Do not touch the circuit and metal frame on the outer lead circuit board with your hands. 2. If direct contact is necessary, the human body and the module should be kept at the same potential Or ground the human body well 3. The soldering iron used for welding and the electric tools used for operation must be well grounded no leakage 4. Do not use a vacuum cleaner for cleaning as it produces strong static electricity 5. Dry air will also generate static electricity, so the humidity in the workplace should be RH60% about 6. When taking out or putting it back into the bag or moving the location, care should also be taken to prevent Static electricity Do not change the package or discard the original package at will
